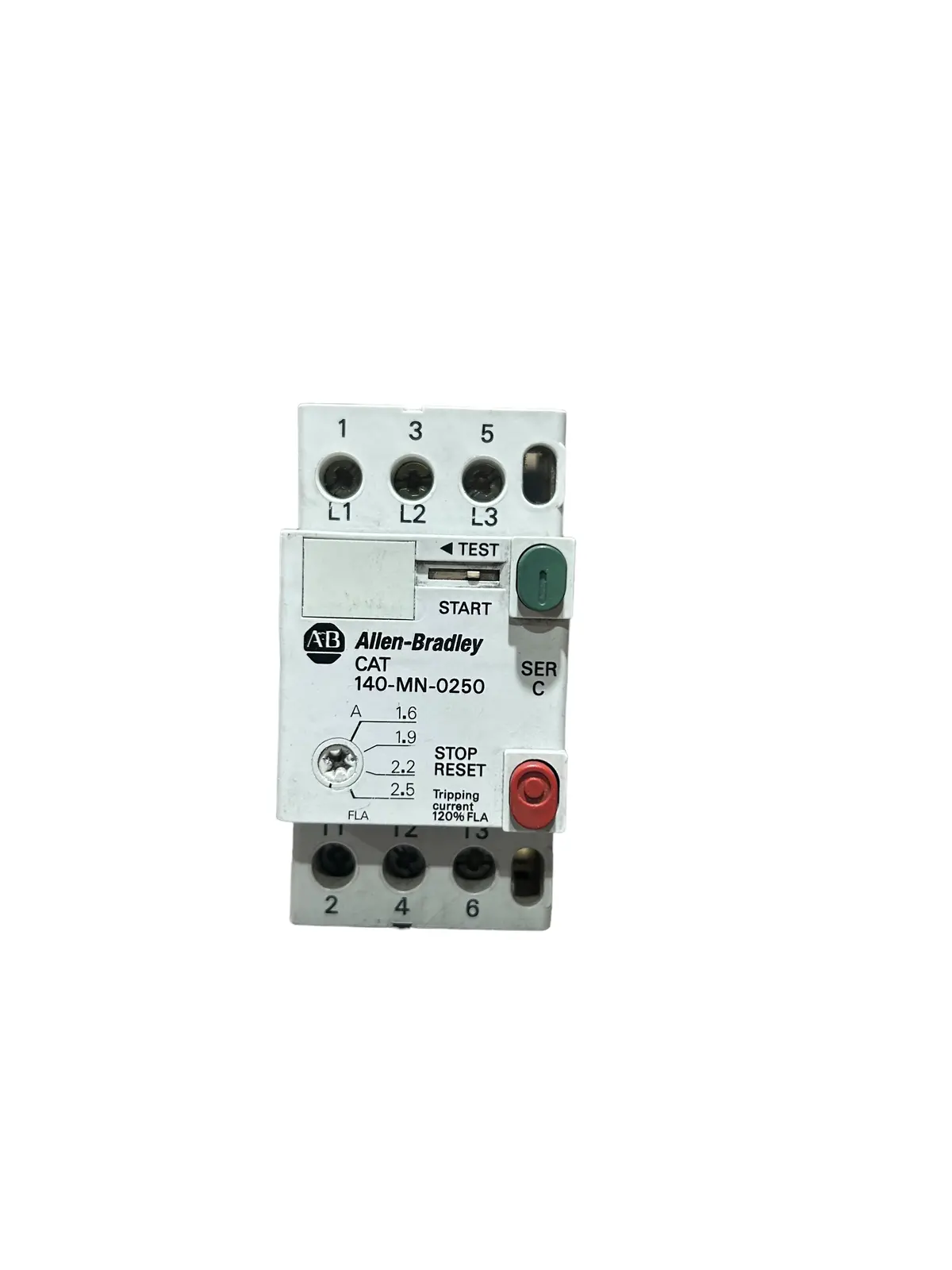

Allen Bradley, 140–MN-0250, Motor Circuit Breaker
Description
140MN0250
DISCONTINUED BY MANUFACTURER 08/31/2012
STARTER MOTOR PROTECTOR
1.6-2.5 AMP
3 POLE
Technical specifications for 140-MN-0250
| Brand | Allen-Bradley / Rockwell Automation |
|---|---|
| Series | Miscellaneous Allen Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 140-MN-0250 |
| Part Number | 140-MN-0250 |
| Brand | Allen-Bradley |
| Series | Bulletin 140 / KTA Circuit Breaker |
| Description | Molded Case Circuit Breaker |
| Series | 140-M |
| Voltage rating | 690 VAC |
| Voltage | 600 Volts AC |
| Applicable Motor Type | Slip-ring / Squirrel cage motors |
| Single Phase Operation | Supported |
| Frequency | 50/60 Hertz |
| Input voltage phase | 3-Phase |
| Adjustable Trip range | 1.6 A – 2.5 A |
| Operating Current | 28 A |
| Magnetic release | 28 A |
| Current | 28 Amperes |
| Switching motor ratings @ 50 Hz | 0.37 kW @ 230 VAC; 0.55 / 0.75 kW @ 400 VAC; 1.5 kW @ 690 VAC |
| Applicable wire size | # 16 thru 10 AWG |
| Protection | Class 10 |
| Switching motor ratings @ 60 Hz | 0.5 Hp @ 230 VAC; 1 Hp @ 460 VAC; 1.5 Hp @ 575 VAC |
| Wire type | Solid Copper wire |
| Dimension | 7 x 6 x 7 inches |
| Thermal release adjustment | 1.6 A – 2.5 A |
| Wire Insulation rating | 75 Degree Celsius |
| Tripping current rating | 120% FLA |
| Short Circuit rating (400 / 415 VAC) | 100 kA |
| Tightening Torque | 20-26 lb-in |
| UPC | 10662468198582 |
| Installation | DIN Rail |
| Trip Indicator | Installed |
| Test Mode | via Slide-on switch |
| Reset / Stop button | Installed |
| Embedded buttons | Start; Stop / Reset |
| Mounting | DIN Rail |
| Auxiliary contact | One (1) Normally Open (N.O.) contact |
PRODUCT DISCLOSURE
This product was acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
External packaging has been subjected to external smoke damage
