Arlington NMPV100 1-Inch Nonmetallic Multi-Cable Connector – 25-Pack

Description

The Arlington NMPV100 is a 1‑inch non‑metallic multi‑cable connector designed for solar PV installations. It securely routes 1 to 9 PV cables into junction boxes, combiner boxes, or raceways while maintaining a tight, weather‑resistant seal. The internal compression grommet tightens around the cables as the nut is secured, creating a clean, UL‑compliant entry point for rooftop solar wiring.

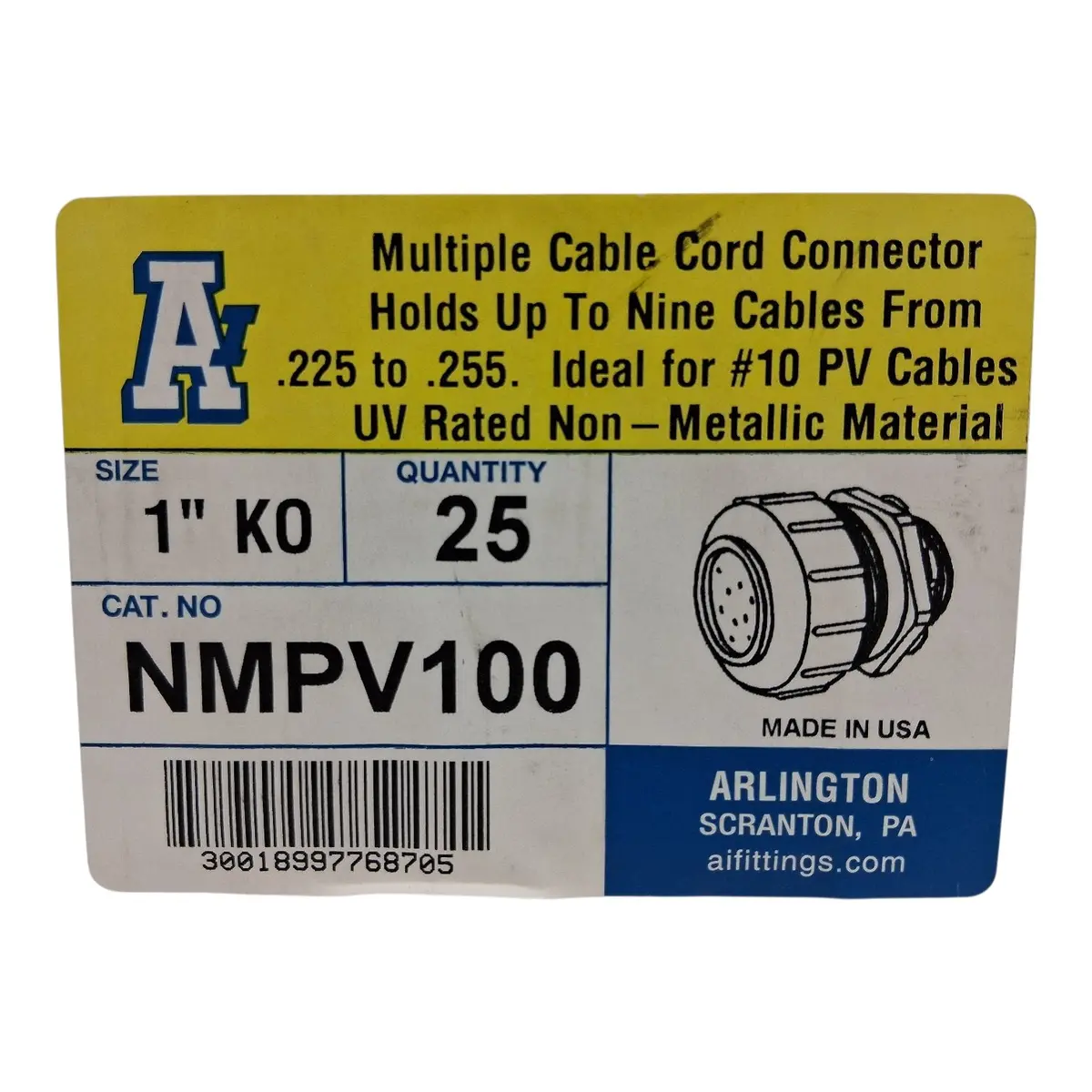

This listing is for a factory 25‑pack, the standard manufacturer packaging.

Key Features

• Holds 1–9 PV cables

• 1″ trade size connector

• Cable range: 0.225″–0.255″ diameter (#10 PV cable)

• UV‑rated plastic body for outdoor durability

• Polyethylene sealing ring + zinc die‑cast locknut

• Ships fully assembled for fast installation

• Ideal for solar raceways, combiner boxes, and junction boxes

Specifications

• Model: NMPV100

• Material: UV‑rated plastic body; polyethylene sealing ring; zinc locknut

• Dimensions: 1.926″ H × 2.004″ W

• Color: Black

• Pack Size: 25 connectors

Common Uses

• PV cable entry into raceways

• Combiner box cable management

• Junction box terminations

• Multi‑cable rooftop solar wiring

Barcode: 30018997768705
