Description

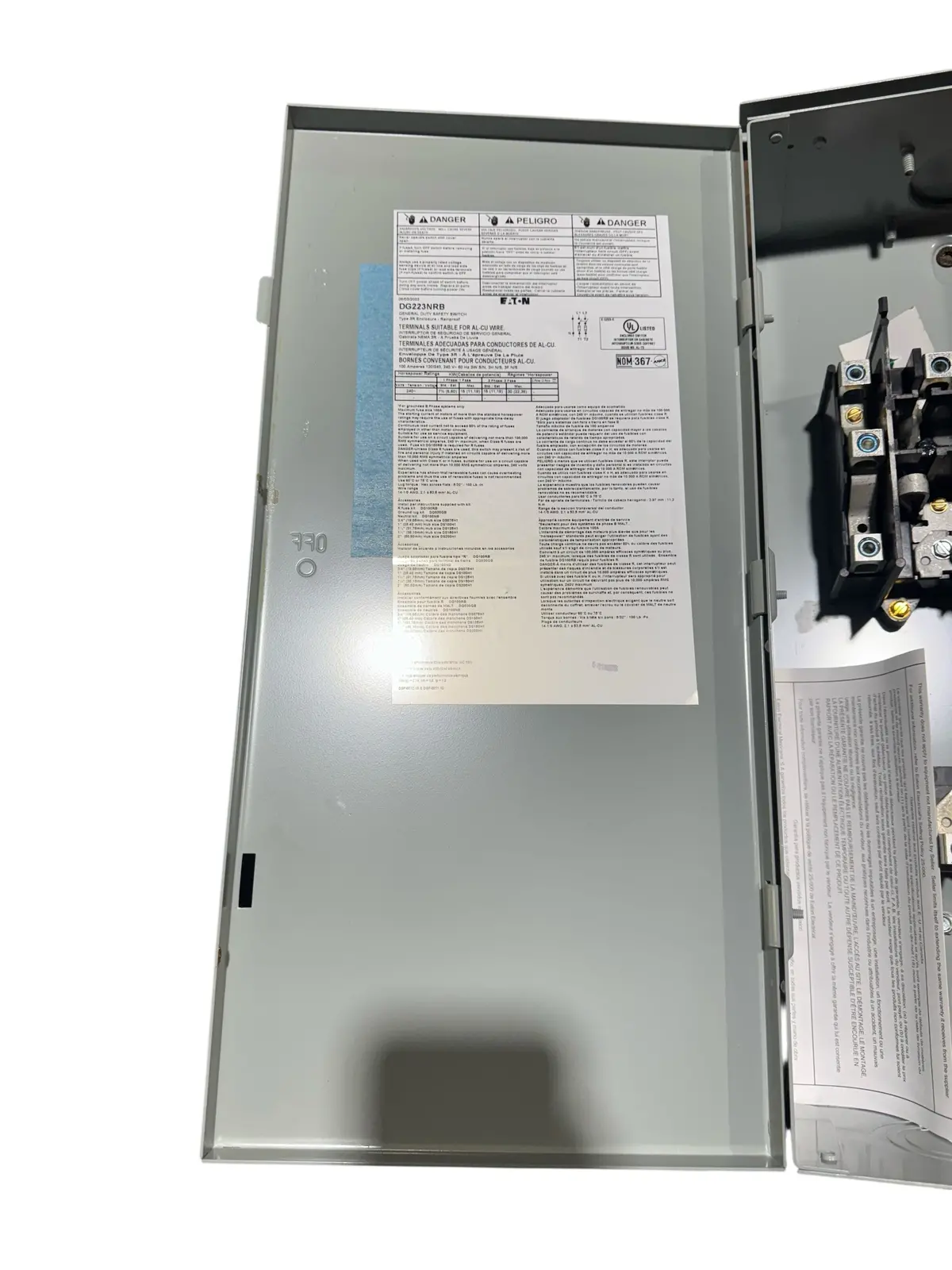

100 Amp Double Pole Fusible NEMA 3R General Duty Safety Switch
- Suitable for light duty motor circuits and service entrance
- Ample wiring bending space provides for easier installation
- Additional door locking capability
General specifications
| Product Name | Eaton general duty cartridge fuse safety switch |
| Catalog Number | DG223NRB |
| UPC | 782113144252 |
| Product Length/Depth | 7.38 in |
| Product Height | 19.25 in |
| Product Width | 9.13 in |
| Product Weight | 14 lb |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Certifications | UL Listed |
| Catalog Notes | Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed. |
Physical Attributes
| Enclosure | NEMA 3R |
| Enclosure material | Painted galvanized steel |
| Fuse configuration | Fusible with neutral |
| Number of poles | Two-pole |
| Number of wires | 3 |
| Type | General duty, cartridge fused |
Performance Ratings
| Amperage Rating | 100A |
| Fuse class provision | Class H fuses |
| Voltage rating | 240V |
Miscellaneous
| Product Category | General duty safety switch |
