Ironridge ATH-01-M1 Rev D Tile Roof Hook with Dual Lag Bolts

Description

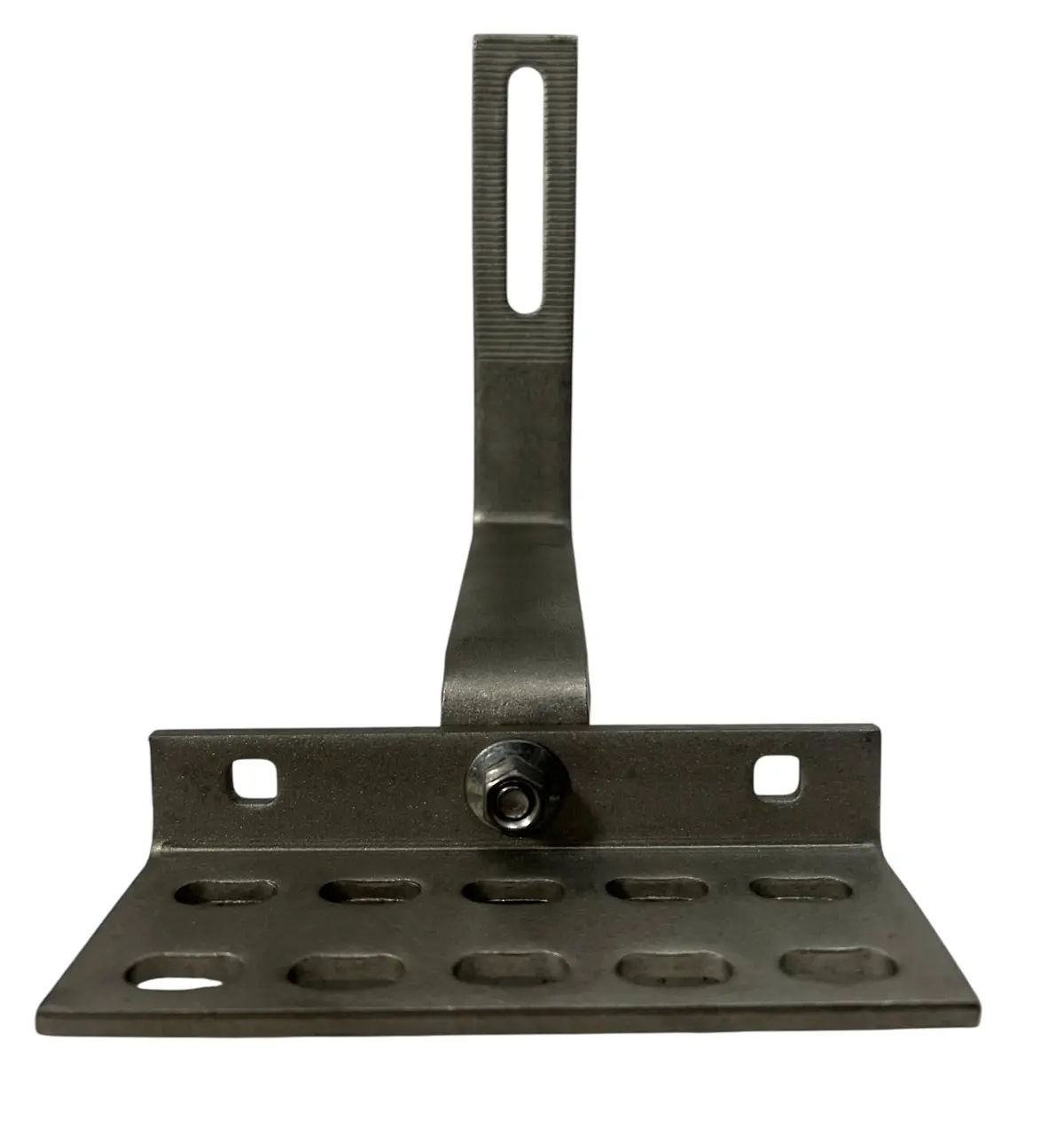

The IronRidge ATH‑01‑M1 Rev D All Tile Hook is a universal tile‑roof attachment engineered for strength, adjustability, and fast installation. It works with flat, S‑tile, and W‑tile profiles and includes two stainless steel lag bolts for secure anchoring into the roof structure.

The slotted vertical arm provides height adjustability to accommodate uneven tile surfaces, while the wide base distributes loads effectively. The hook is compatible with XR10, XR100, and XR1000 rails using standard IronRidge L‑Feet or directly with the All Tile Hook’s integrated mounting surface.

⭐ Key Features

• Universal fit for flat, S‑tile, and W‑tile roofs

• Includes (2) stainless steel lag bolts

• Strong, corrosion‑resistant aluminum construction

• Slotted vertical arm for height adjustment

• Wide base for improved load distribution

• Compatible with XR10, XR100, XR1000 rails

• Works with IronRidge L‑Feet or direct‑mount configurations

• Meets structural and grounding requirements for residential solar

📐 Specifications

• Model: ATH‑01‑M1 Rev D

• Material: Aluminum hook + stainless steel hardware

• Included Hardware:

  • (2) 5/16″ × 3″ stainless lag bolts

• Roof Type: Tile (flat, S‑tile, W‑tile)

🔧 Common Uses

• Tile‑roof solar PV installations

• Residential racking attachment

• Projects requiring adjustable tile hooks

• Bulk installer stocking
