Description

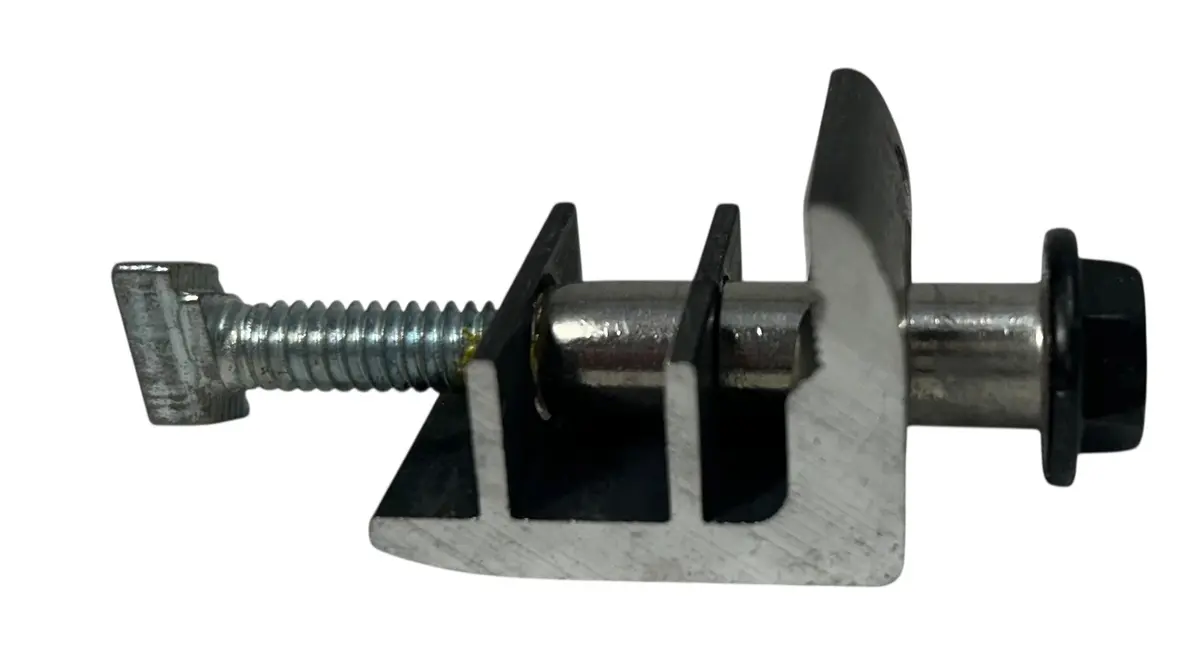

The IronRidge UFO‑END‑01‑B1 Rev A is the black anodized Universal Fastening Object (UFO) End Clamp used to secure the outer edges of PV modules on XR10, XR100, and XR1000 rails. Its floating, self‑standing design allows it to drop into the rail channel and lock into place with a simple twist, making installation fast and consistent.

The clamp automatically adjusts to module frame heights from 30–40 mm, eliminating the need for multiple clamp sizes. Integrated serrations provide UL 2703‑listed bonding, ensuring electrical continuity across the array without separate grounding hardware.

This listing is for a box of 10, ideal for installers and warehouse stocking.

⭐ Key Features

• Universal fit: works with 30–40 mm module frames

• Black anodized finish for premium aesthetics

• Self‑standing, twist‑lock design for fast installation

• Integrated bonding meets UL 2703 grounding requirements

• Compatible with XR10, XR100, and XR1000 rails

• Preassembled with stainless steel hardware

📐 Specifications

• Model: UFO‑END‑01‑B1 Rev A

• Finish: Black anodized

• Frame Range: 30–40 mm

• Bonding: UL 2703 integrated grounding

• Material: Aluminum body with stainless hardware

🔧 Common Uses

• Securing PV module ends on XR rails

• Residential and commercial solar arrays

• Black‑on‑black module installations

• Bulk installer hardware stocking
