Description

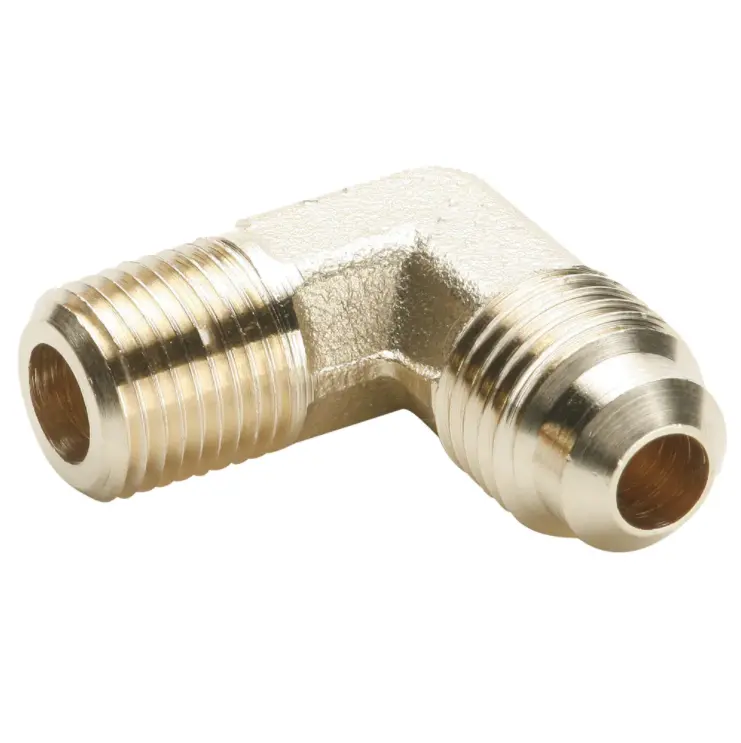

3/8″ Flare SAE Tube x 3/8″ Male Pipe Thread
Technical Specifications
- Connection 2 Style:Male Pipe
- Connection 1 Style:Flare
- Connection 1 Tube O.D. (inch):3/8
- Connection 2 Thread Size (mm):na
- Connection 2 Tube O.D. (inch):na
- Connection 2 Thread Size (inch):3/8
- Shape:90° Forged Elbow
- Style:Flare to Pipe
- Minimum Operating Temperature:-65 °F, -53 °C
- Maximum Operating Temperature:250 °F, 121 °C
- Maximum Operating Pressure:2800 psi, 193 bar
- Specifications Met:SAE J512, SAE J513
- Body Material:Brass
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared
Item Information
Parker’s 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.
Markets:
• Refrigeration
• Heavy Duty Truck
• Mobile
• Industrial
• Heating
• Air conditioning
