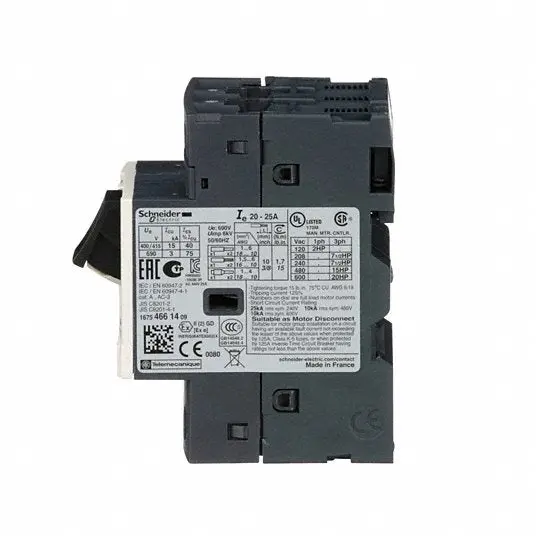

Schneider Electric GV2ME22 Manual Motor Starter – 3-Pole, 20–25 A, Push-Button Operation, Open-Style Design

Description

NEW IN BOX

IEC Manual Motor Starters
• Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection
Schneider Electric
Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.

Technical Specs

• Item Manual Motor Starter



• Operator Push Button



• Enclosure NEMA Rating No Enclosure



• Amps AC20 to 25



• Overload Relay Amp Setting20 to 25A



• Number of Poles3



• Description/Special Features Screw Clamp Terminals, Single Unit



• Max. Voltage600V AC



• HP @ 3 Phase – 240V7 1/2 hp



• HP @ 3 Phase – 480V15 hp



• Height3.5 in



• Width1.75 in



• Depth2.6 in



• HP @ 1 Phase – 120V2 hp



• HP @ 1 Phase – 230V3 hp



• HP @ 3 Phase – 208V5 hp



• HP @ 3 Phase – 460-575V15/20



• HP @ 3 Phase – 575V20 hp



• Standards CSA, UL



• Pilot Light No



• Phase Loss Sensitivity No
