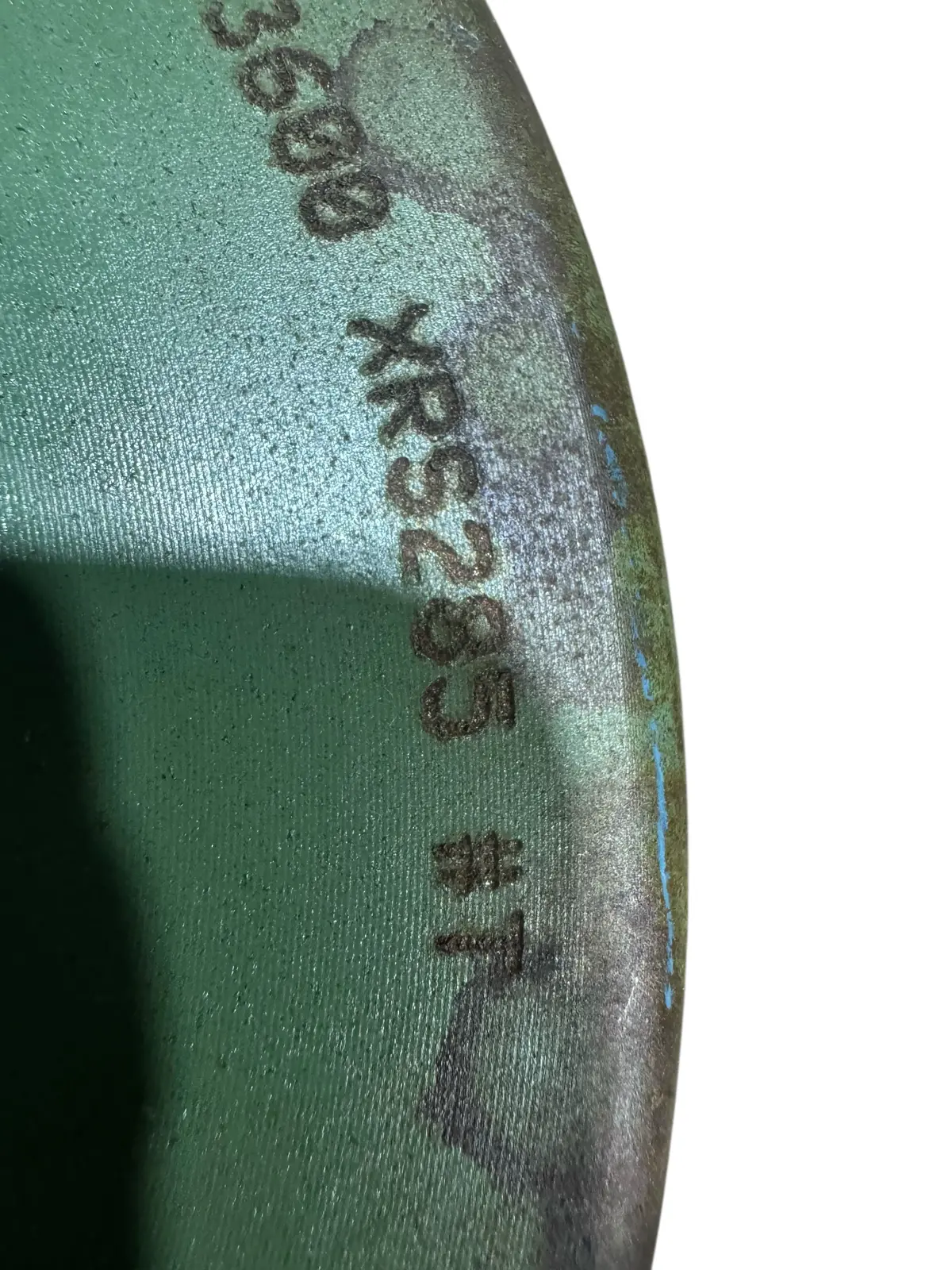

TB Woods L1S 2-3/8″ Coupling Hub – XRS285 Model, Rated for Up to 3600 RPM

Description

Specifications

Product Family: Sure-Flex Type SC, Spacer HubCoupling Size: 11Material Type: High Strength Cast IronBore Size: 2 3/8″Max RPM: 3600Setscrew Length: 1 inSF Hub Diameter (H): 5 1/4 inLength Through Bore (C): 2 23/32 inSet Screw Distance (S): 1 5/8 inBore Tolerance: +.0005 to +.0020 inSetscrew Size, Location: 1/2-13 UNC, over keyseatSetscrew Torque Requirement: 50 in-lbCapscrew Size: Qty 4 — 1/2 x 3-1/2Capscrew Torque Requirement: 75 in-lbs in-lbsParallel Misalignment [Max]: 0.032 (in) with EPDM/Neoprene Sleeves and 0.022 (in) with Hytrel SleevesAngular Gap Misalignment [Max]: 0.151 (in) with EPDM/Neoprene Sleeves and 0.037 (in) with Hytrel SleevesAngular Misalignment [Max]: 1° with EPDM/Neoprene Sleeves and 1/4° with Hytrel SleevesComponent WR²: 0.3523 lbs ft²Torque Rate: 5,890 (in-lbs) with EPDM or Neoprene sleeve; 18,000 (in-lbs) with Hytrel sleeveKeyseat Size: 5/8 in x 5/16 inTorque: 5,890 in-lb with EPDM or Neoprene sleeve, 18,000 in-lb with Hytrel sleeveComponent Weight: 12.2 lbs
