Description

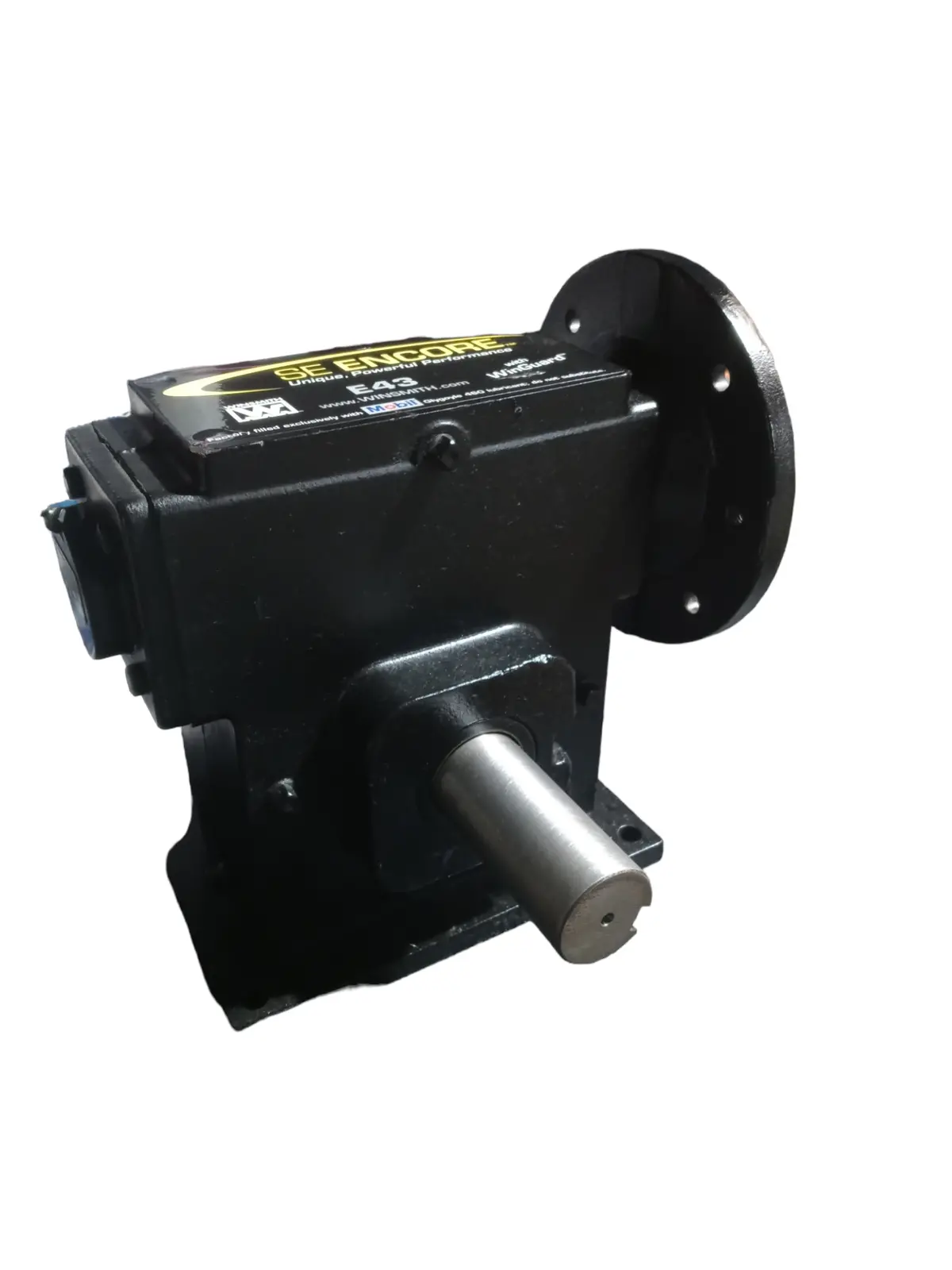

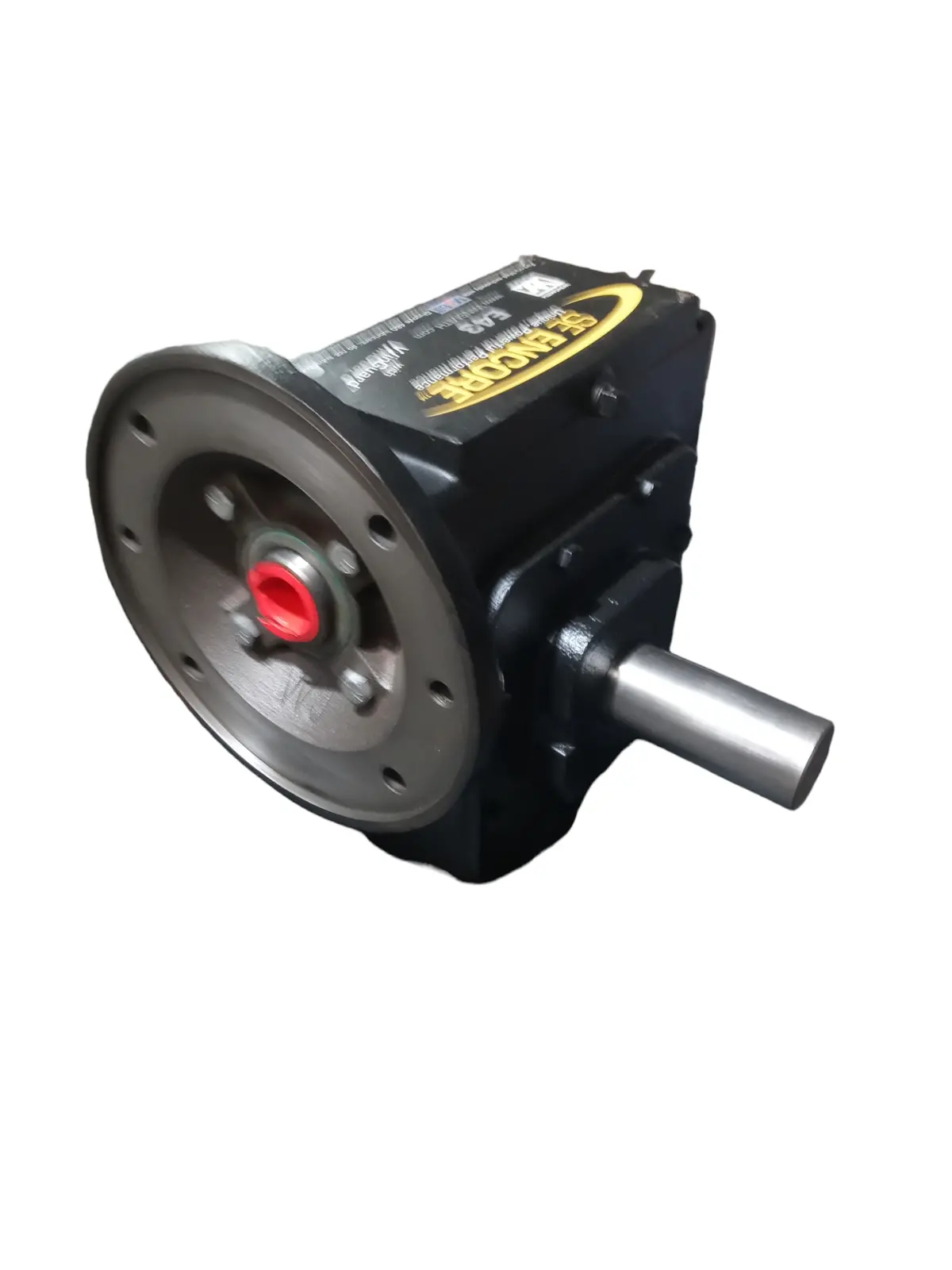

Winsmith, E43MDTS43000D4, Speed Reducer – NEW NO BOX

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed, prior to shipment. All parts are NEW/NEVER USED and fully functional.

*****This product has been subjected to minor cosmetic damages from long term storage or shipment.  The cosmetic damages will not affect the overall performance of the product.

Right Angle Reducer; SE ENCORE; 25 To 1 Nominal Ratio; 42C Frame; Quill Input; Left Hand Output; Worm Gear; MDTS Series; Base Mounted; 3/8″ Input Shaft Diameter; Cast Iron; 547In-Lbs Output Torque

Category  Right Angle Shaft
Brand  Winsmith Manufacturer Name PEERLESS-WINSMITH
Weight / Kilogram 11.8
Product Group – BDI M02282 Tradename SE ENCORE
Reducer Type:  Right Angle Nominal Ratio 25:1Mounting Frame 42C Input Type C-Face QuillOutput Type Left Hand Motor Included NoNominal Max Input Rating 0.5HP Nominal Max Output RPM 70Mounting Method Direct Mounted Output RPM at 1750 RPM Input 70Gearing Worm Manufacturer’s Series MDTSMounting Position Floor Mounting Bolt Pattern footprint RectangularMaximum Overhung load value And um 650Lbs Base Included YesInput Rating value plus um 0.7HP Housing Material And Finish Cast IronOutput Torque 547In-Lbs Fan Cooling NoOther Features Single Reduction | Worm on Top Inch – Metric InchCategory – BDI Reducers Right Angle UNSPSC 26111537Harmonized Tariff Code 8483.40.10.00 Noun ReducerKeyword String Speed Worm Manufacturer Item Number E17MDTS4W000D4 Weight / LBS 26Long Description Right Angle Reducer; SE ENCORE; 25 To 1 Nominal Ratio; 42C Frame; Quill Input; Left Hand Output; Worm Gear; MDTS Series; Base Mounted; 3/8″ Input Shaft Diameter; Cast Iron; 547In-Lbs Output Torque Overall Height 6.44 Inch | 163.576 MillimeterBase to Center of Input Shaft 4.19 Inch | 106.426 Millimeter Center Distance 1.75 Inch | 44.45 MillimeterInput Shaft Diameter 0.375 Inch | 9.525 Millimeter Nominal Center Distance 1.75 Inch | 44.45 MillimeterOverall Length 7.5 Inch | 190.5 Millimeter Output Shaft Length 2.56 Inch | 65.024 MillimeterBase to Center of Output Shaft 2.44 Inch | 61.976 Millimeter Bolt Hole Diameter 0.406 Inch | 10.312 MillimeterInput Shaft Length 0 Inch | 0 Millimeter Output Bore 0 Inch | 0 MillimeterOutput Shaft Diameter 1 Inch | 25.4 Millimeter Overall Width 7 Inch | 177.8 Millimeter
